Measuring Systems

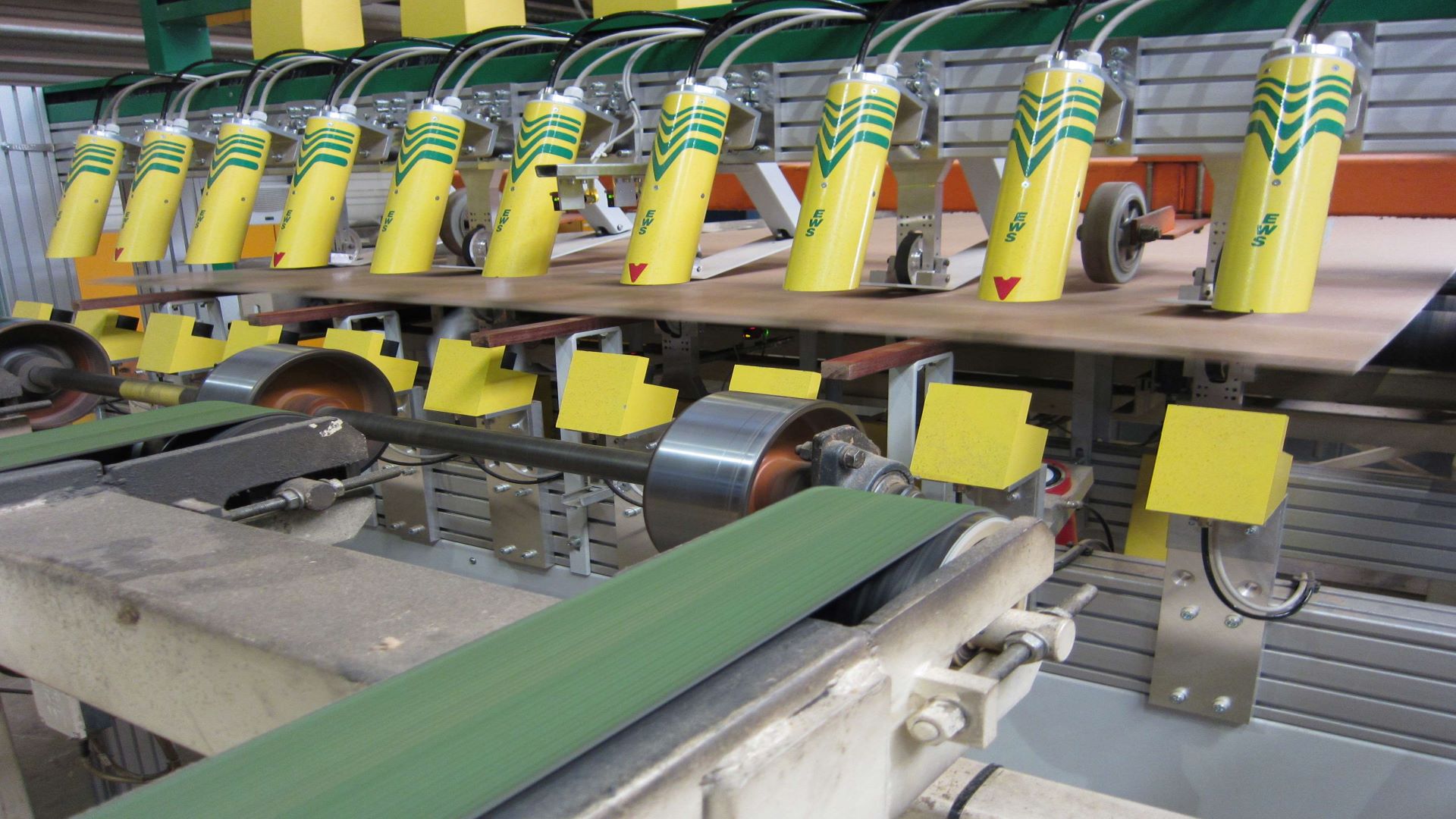

BLOW-SCAN Blow Detection System
Blow Detection Systems (early warning)automatically detect blows, bursts and unglued areas during the production of wooden composite panels. They send inaudible ultrasound through the panels and can be deployed in harsh production environments, such as dust, steam and high temperatures.

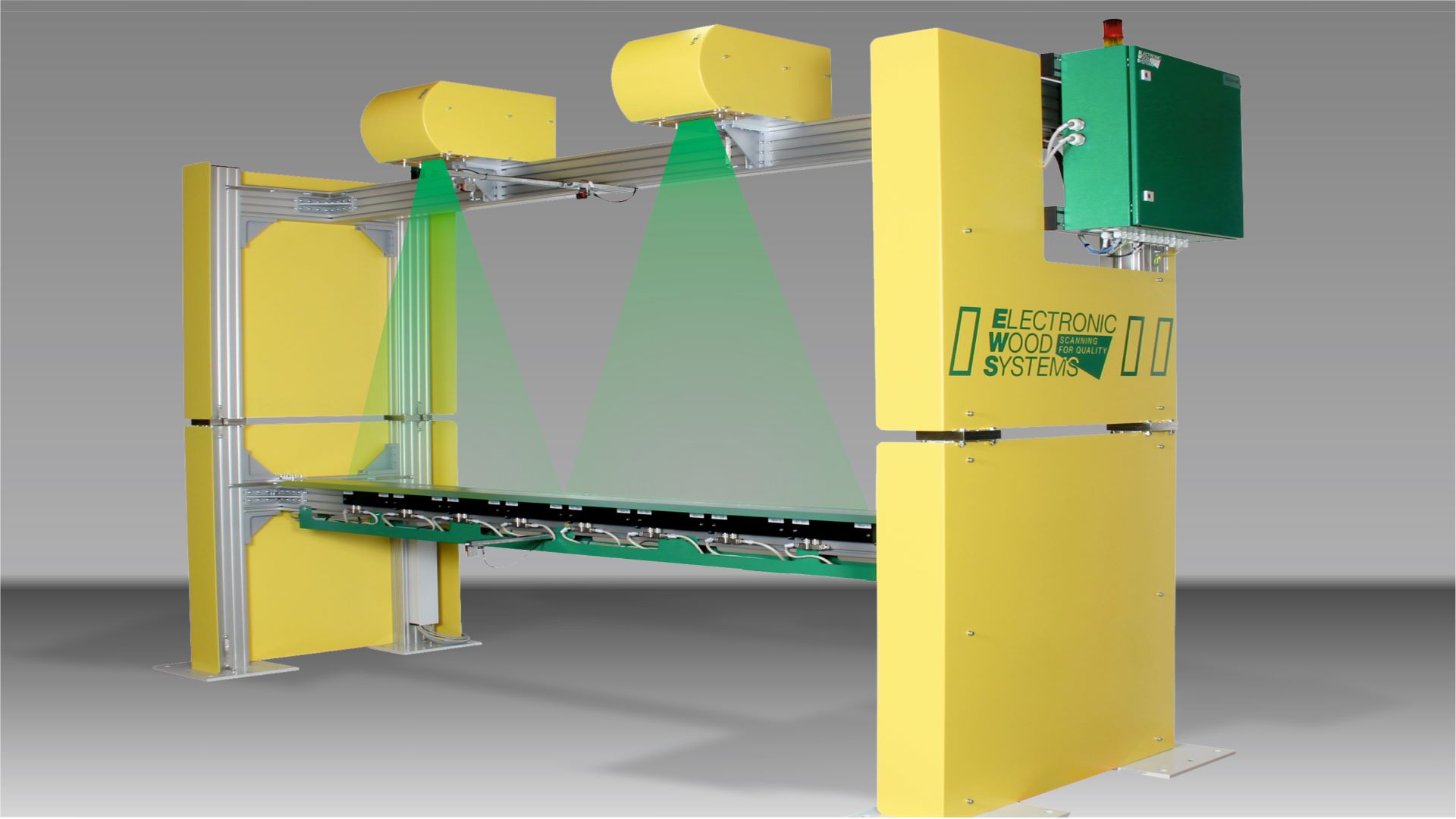

CONTI SCALE X Non-contact Panel Scale
Continuous Panel Scale uses X-ray technology. Two X-ray tubes are located on a horizontal frame above the panel. The low energy X-ray beams are focused across the production width, but scan the full width of the panel.

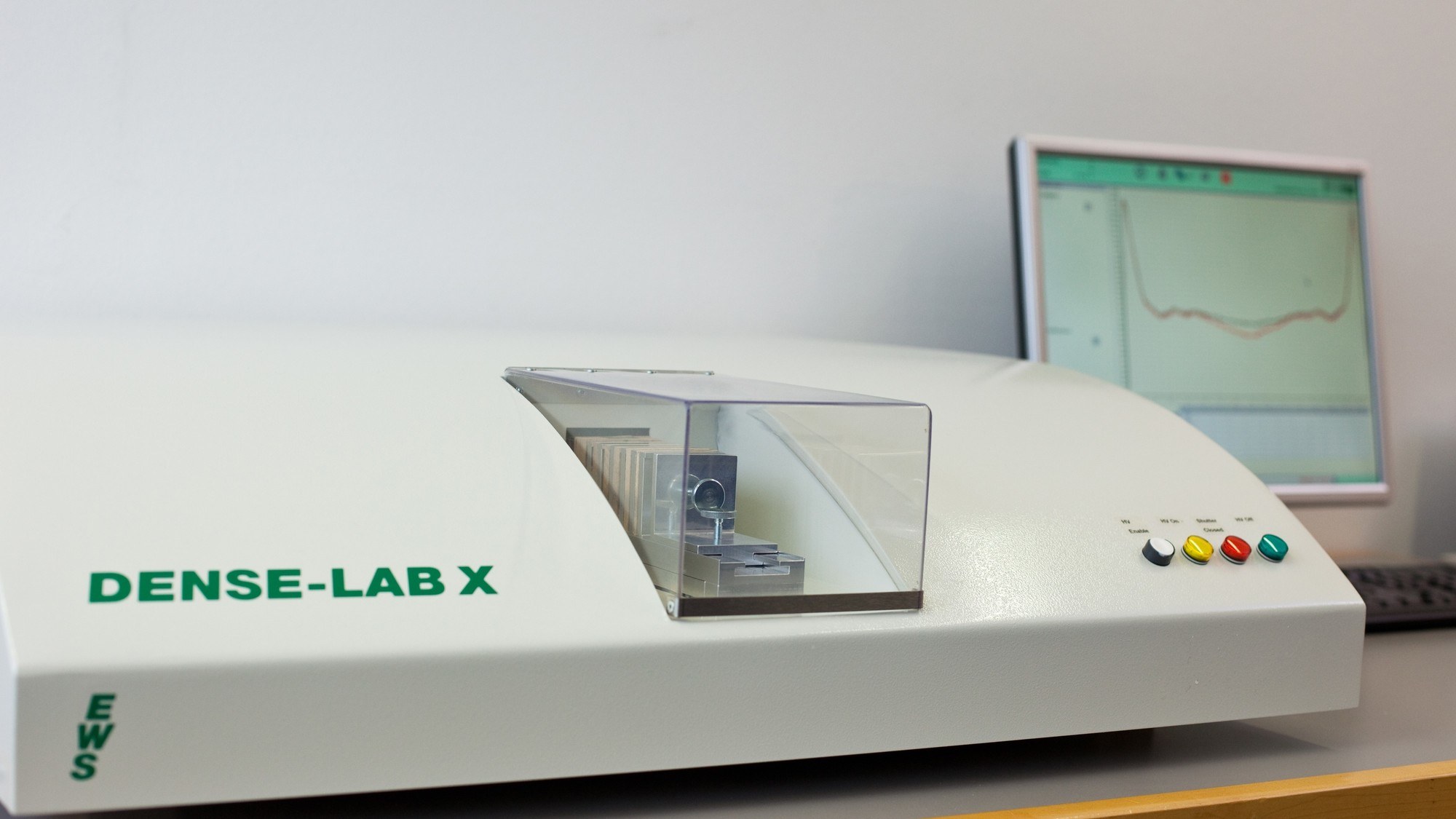

DENSE-LAB X Laboratory Density Profile Analyzer
The laboratory density profile measuring system DENSE-LAB X determines the density distribution over the sample thickness (perpendicular to the panel surface) on small samples with the usual dimension of 50 x 50 mm². The measurement is non-destructive and non-contact using X-ray technology.
MASS-SCAN X Traversing Area Weight Gauge
One of the most vital factors in the production of wood panels is the constant spreading of material. If tolerances are exceeded, higher material and energy consumption are the consequences. MASS-SCAN X, which constantly moves back and forth across the mat before it enters the hot press, maintains tolerances within the optimum range.
MAT-SCAN - FBD (Foreign body detection)
The MAT-SCAN - FBD is able to detect smallest foreign bodies in a fiber mat to prevent damages to the press belts.MAT-SCAN - FLY (High Resolution Area Weight Gauge)
The MAT-SCAN - FLY measures the material distribution of wood fiber mats.

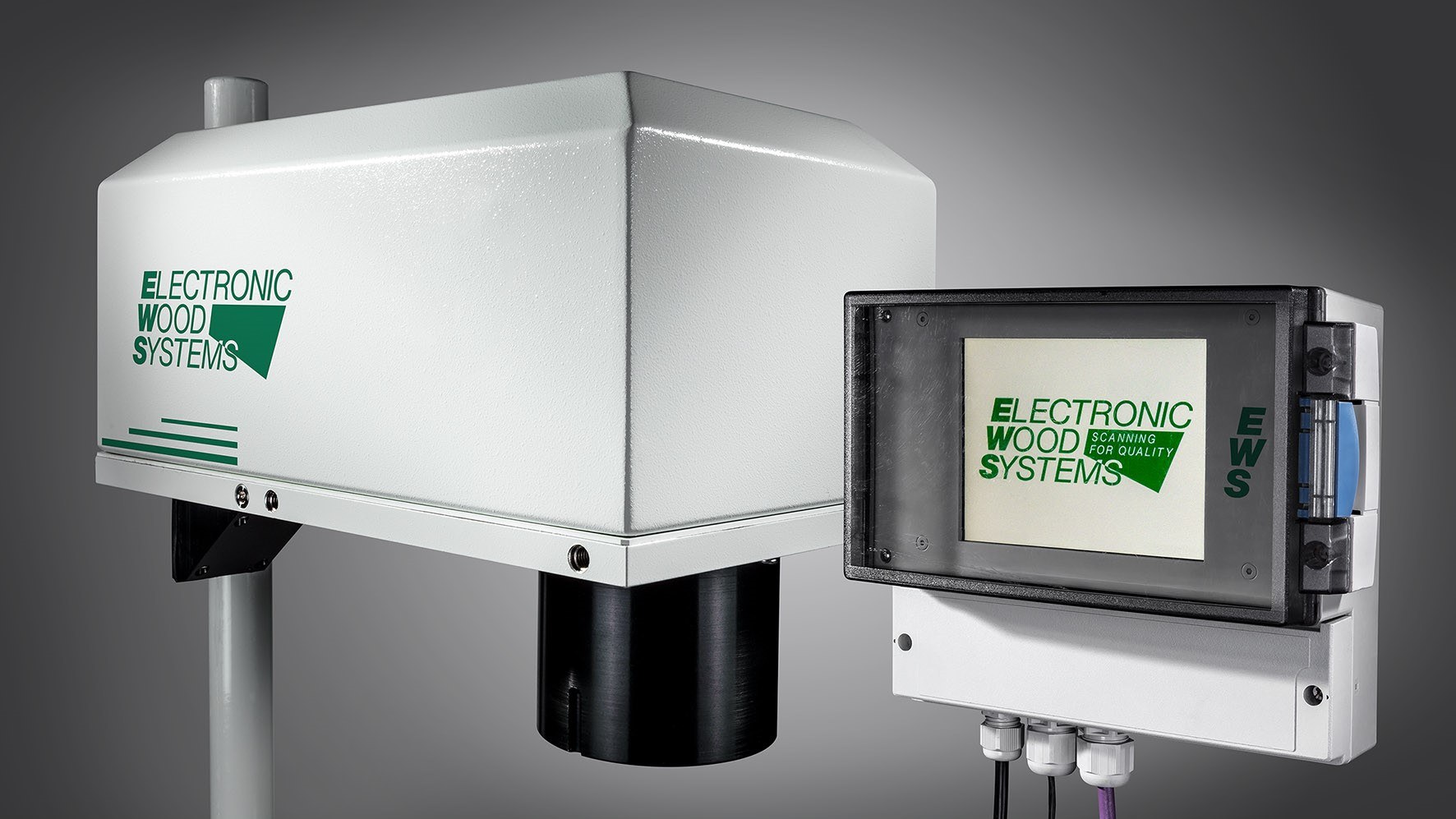

MT-SCAN Infrared Moisture Analyzer
Non-contact measuring of particle and fiber moisture. Multi-wavelength infrared light is used which is targeted to, and reflected by the material surface.

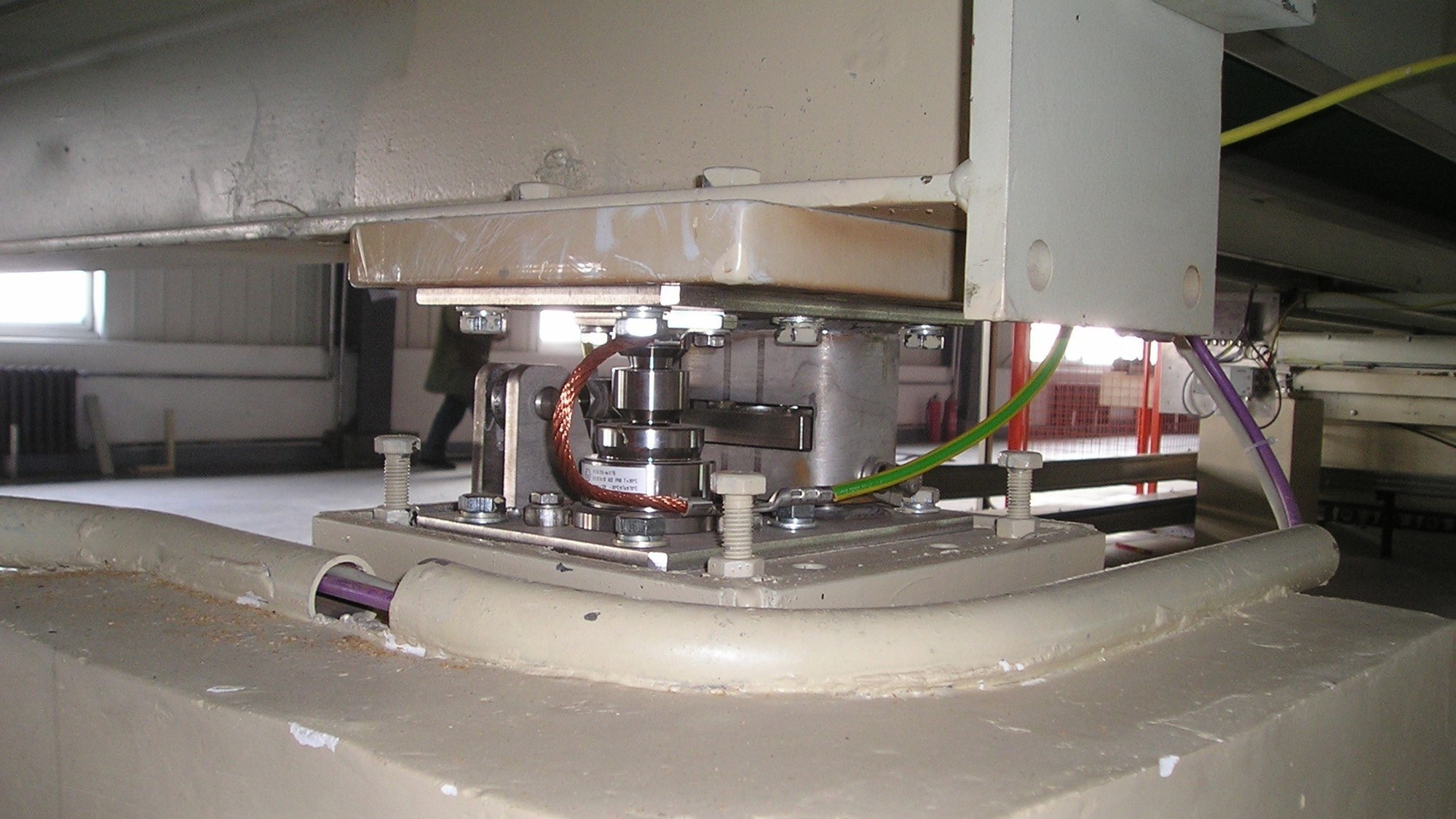

PANEL-SCALE Mechanical Board Scale
Material savings are achieved through accurate panel weight control. Too-high panel weight is result of too-high material input. Too-low panel weight will reduce panel quality.
