Thickness Gauge THICK-SCAN

for MDF, HDF, Particleboard, OSB, OSL, LVL, Plywood and others


Brochure:  PDF

Continuous Thickness Measurement avoids waist of raw material and energy


Production of panels which exceed plustolerances results in increase of production cost. This also results in consumption of additional (unneeded) glue and war material while also extending the press time.

EWS thickness measuring systems which are located after the hot press help to optimize the process and to reduce the costs while, at the same time, assuring the quality standard.



The time is long past since...

… panel thickness tolerances have been measured during production by handheld devices. Today, however, such measurement is carried out continuously online. In the majority of plants, quality control is not the first priority for new investment for online thickness measurement. The current trend is to achieve the enormous potential savings in wood raw material, resin and energy consumption.


Function

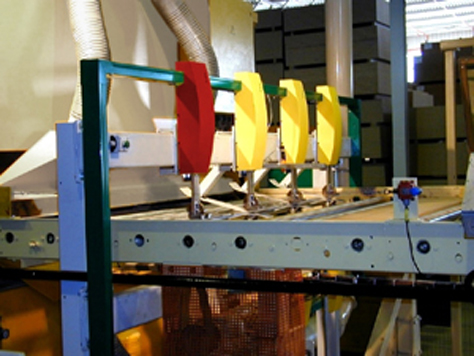

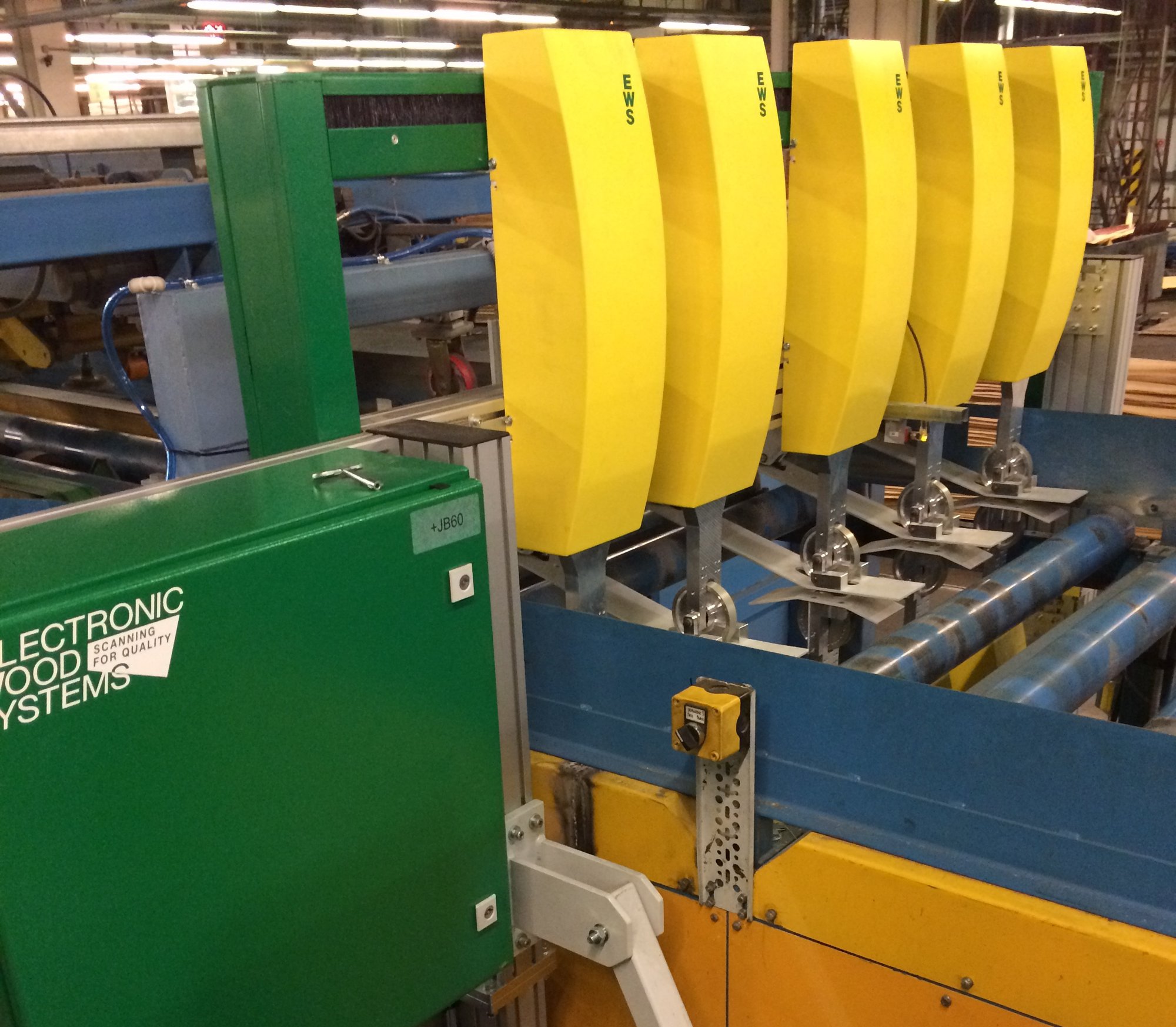

The measuring heads are mounted opposite to each other and indicate panel thickness continuously during production.


Options
  • Connection to PLC
  • Extendable to blow detection
  • Integration of board scale to allow density evaluation
  • "Online-Calibration" by separate "Reference-Track" located outside of the production line. (Recommended for endless production.)

Visualization
  • Cross-, lengths profile
  • Trend per track
  • Trend min., max. and mean value
  • History function


  1. Thickness track
    (Example shows five tracks)
  2. Thickness profile across production
  3. Average thickness
    (Each bar shows one panel)



Installation Locations

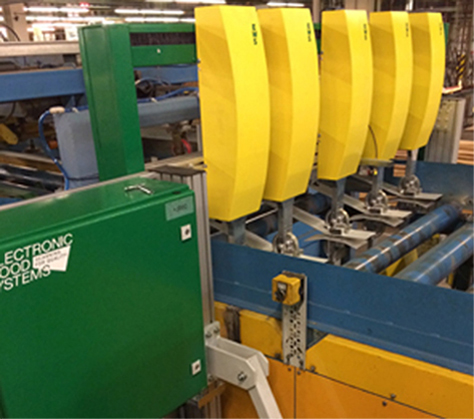

  • After the hot press
  • Before / between / after sander

Data Evaluation by EWS „GAUGE-CONTROLLER“
  • Real time operating system
  • Network connection for visualization PC


"Reference-Track" for "Online-Calibration"

Technical Data
Technology: contact:
(internal non-contact)
Guarantee: Lifetime guarantee on linear sensors
Measuring resolution: 0.01mm [0.0004”]
(per measuring track)
Max. production
speed:
3.5 m/s [0.1 ft/s]

Visualization Software
  • Single opening presses
  • Multi opening presses
  • Continuous presses
  • Sanding lines

Remote Control
Technical assistance is available via
"EWS Online Support".
